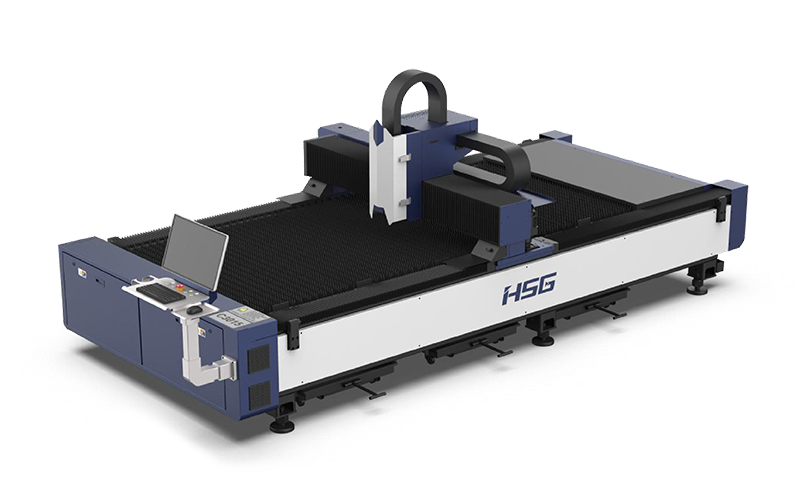

Economical Single-platform Fiber laser Cutting Machine Model : C3015

เครื่องตัดไฟเบอร์เลเซอร์

เครื่องตัดไฟเบอร์เลเซอร์ รุ่น C3015 เป็นเครื่องตัดโลหะประสิทธิภาพสูงที่ใช้เทคโนโลยีไฟเบอร์เลเซอร์ เพื่อให้การตัดแม่นยำ รวดเร็ว และประหยัดพลังงาน เหมาะสำหรับงานอุตสาหกรรมที่ต้องการความละเอียดสูง เช่น ชิ้นส่วนเครื่องจักร, อุปกรณ์ไฟฟ้า, โครงสร้างโลหะ และชิ้นงานศิลปะ

*เงื่อนไขตามที่บริษัทฯ กำหนด

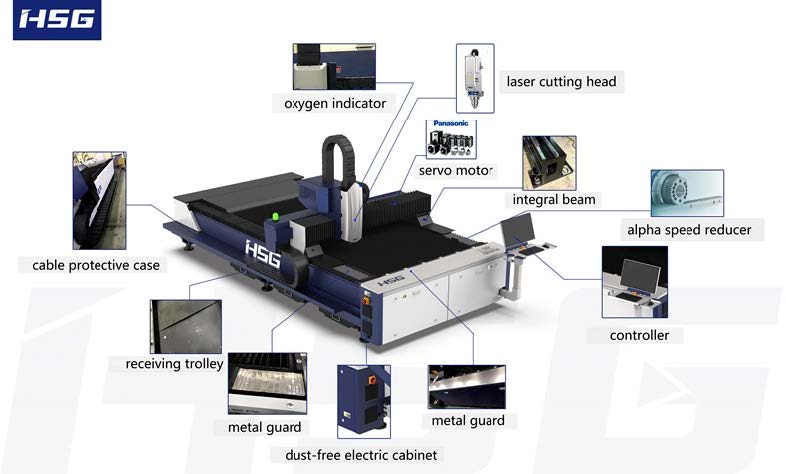

Structure

FEATURES AND ADVANTAGES

HSG Bus-based Control System
EtherCAT bus high-speed response with strong anti-interference capability and simple electrical maintenance. Automated handling of machines maintenance involves real-time monitoring of key components, facilitating regular maintenance reminders.

Follow-up Response Technology
High sensitivity detection of sliner plate
High speed follow of vibrating sheet
Automatic obstacle avoidance

Fully Functional Processing Technology
High-speed microjoining / non-microjoining, counterbore technology and non-inductive perforation.
Manual, visual smart cutting and anti-collision beam. Cut and handle small offcut or leftover fragments of material.
Coaxial visual auto-improving visual feedback to enhance precision and control.
Common line cutting to reduce waste and save energy.

Professional Nesting Software with Standard Configuration
Simple operation with drawing function, support manual and automatic nesting.
Support different materials and thickness with categorized by spreadsheet Excel batch import.

Support Graphics and G Code Software

Configuration
Optical Laser generator
Auto-fogus cutting head
Transmission Reducer(Including gear) Motoreducer/Zhong Yan
Linear guide Lapping / DTX
Precise rack Leitensen / Leadrack
Servo motor and drive Leadshine / Inovance
Mechanical Machine body HSG
Cross beam HSG
Control Control software Alpha T 2.0
Nesting software CyNest (standard edition for dongle)
Gas Control proportional valve MOOXEE(≤3KW) Aventics (4-12KW)
External Water chiller Standard
Installation kits Standard
Core Components
1. Core Components
Its dual servomotor units can run at rotating speed of up to 3750r/min with large input speed reducer and gear wheels from German WITTENSTEIN alpha.
Autofocus Head

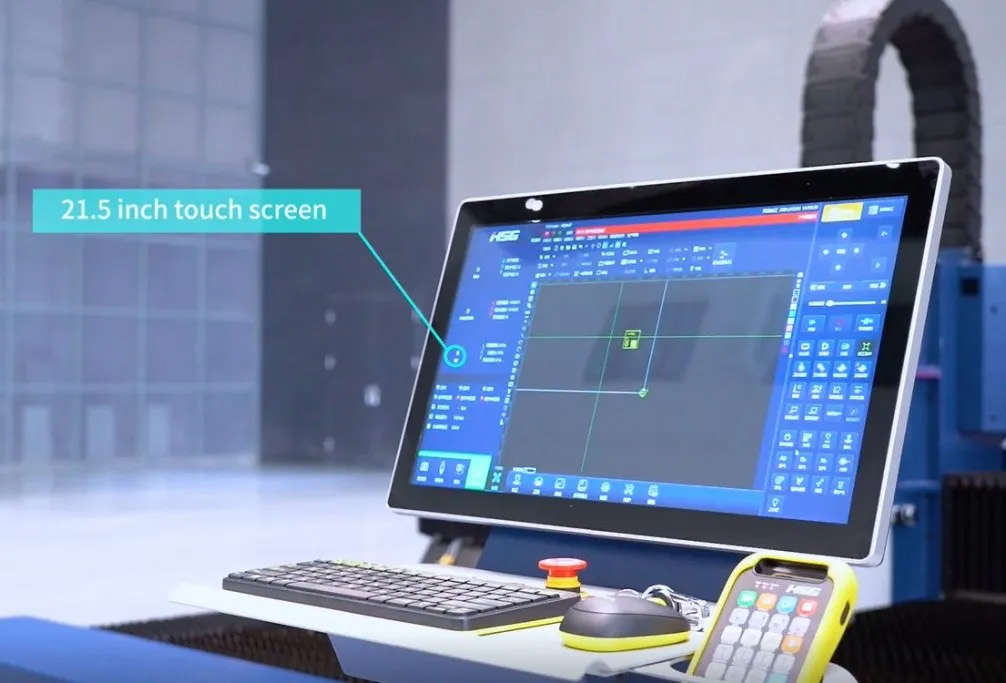

2. Alpha T Bus CNC System
Alpha T can make data transmission via a network cable. Easy to operate with open brand match. Match with 2000+ process data in graphic programming interface. Compatible with multiple files: TH, DXF, DWG, PLT and NC code.
Machine Bed

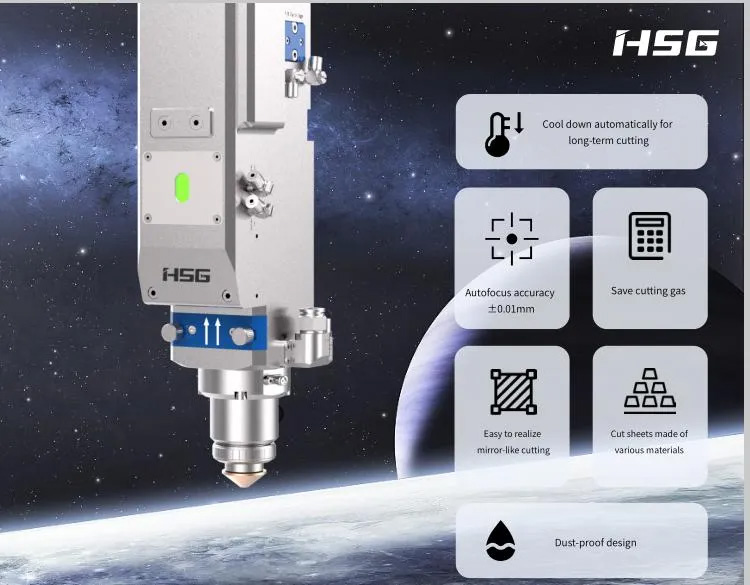

3. Autofocus Cutting Head
  • Autofocus accuracy ±0.01mm
  • Safe water-cooling mode
  • Flexible anti-collision function
  • Real-time monitor & air-blow mirror-like surface
  • Auto surroundings lift to avoid obstacles
  • Anti-pollution design
Alpha T Bus

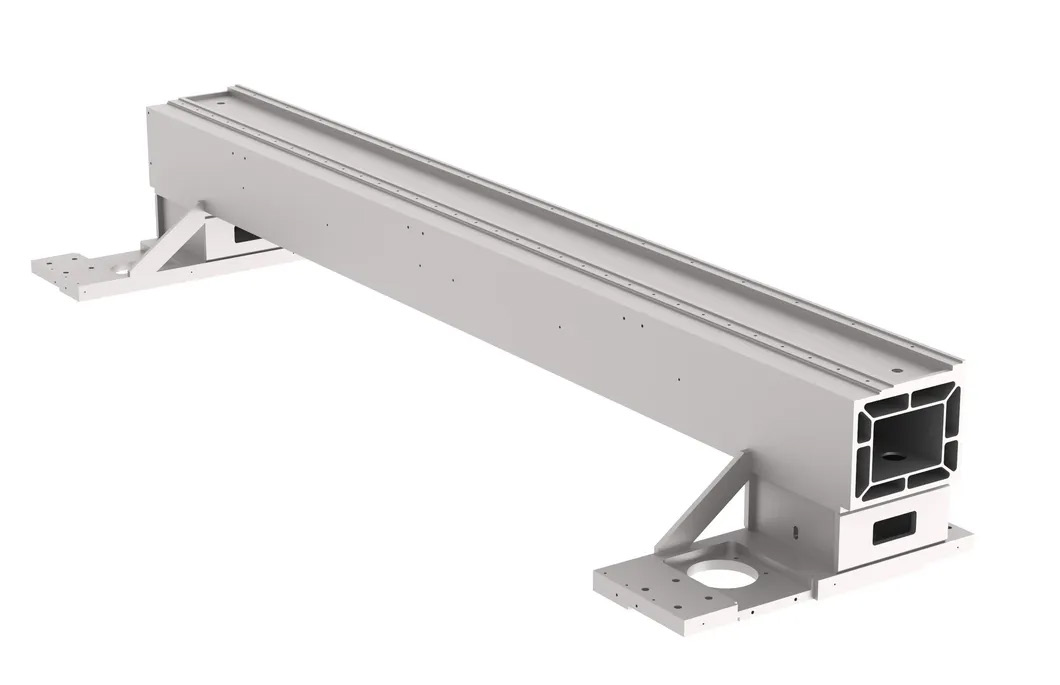

4. Extruded Aluminum Beam
The aluminum alloy is adopted. Our beam is designed as honeycomb anti-compression structure and made by using extrusion molding process.
Aluminum Beam

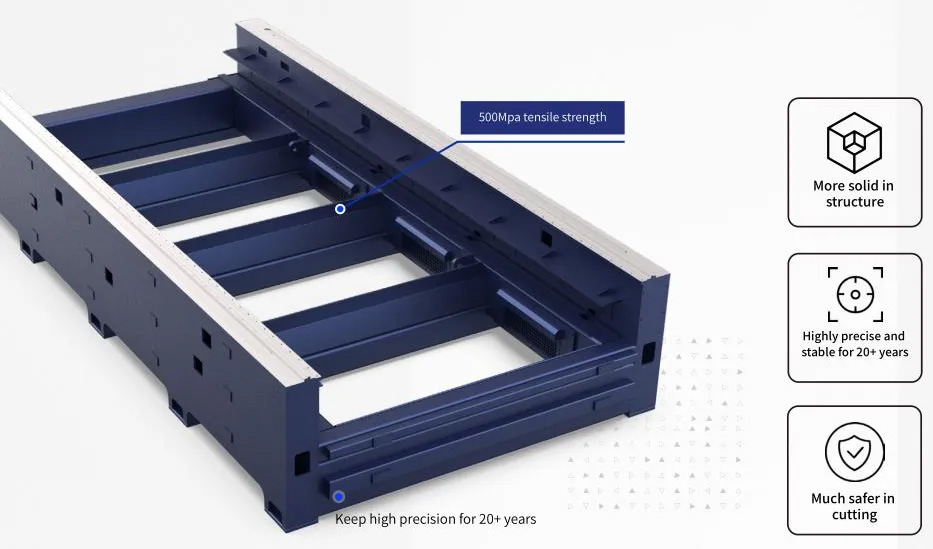

5. Carbon Steel Welded Machine Bed
  • 20+ years usage without deformation
  • Highly accurate positioning with shock absorption
  • Heavy-duty laser support and good rigidity

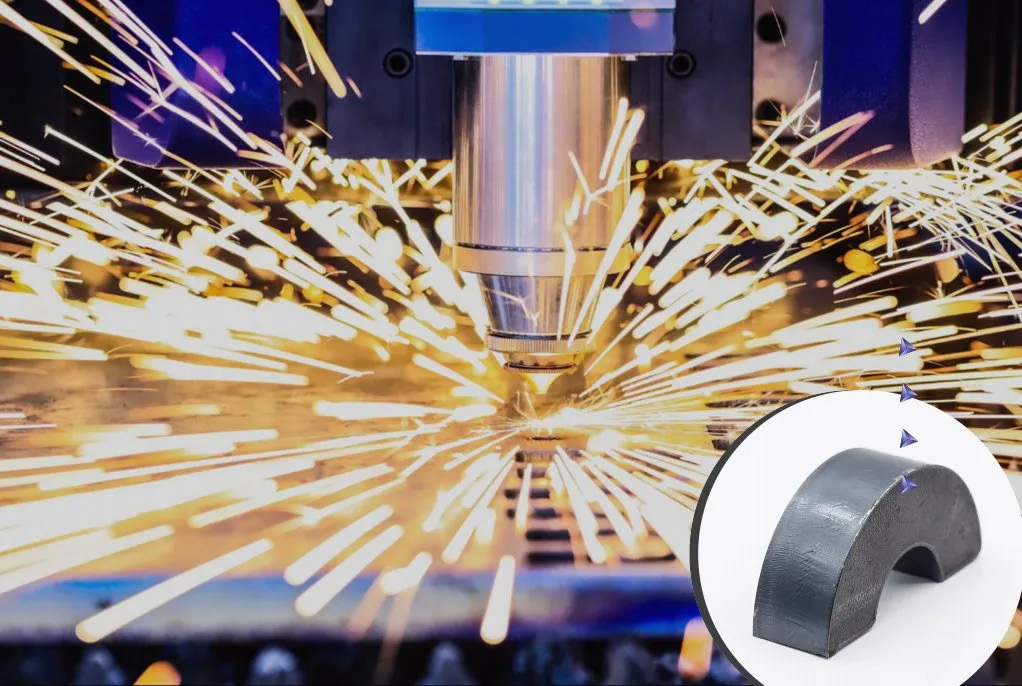

Sheet Cutting
6. GE CI performs well in sheet cutting quality
We will carefully check the entire machine and strictly test its cutting performance. Only those that pass all inspections and get high accuracy report from QC are delivered. All software is first hand to market.

สเปคเครื่อง

MODEL C3015(3000w)
Machining area 3048 x 1524 mm
Z - axis stroke 70 mm
Positioning precision of X/Y axis ±0.05mm / m
Repetitive positioning precision of X/Y axis ±0.03mm
Max. linkage speed 120m/min
Max. linkage acceleration 1.5G
Max. loading weight 600kg
Dimension(Length×Width×Height) 5200×2600×1650mm
Number of phases 3
Rated voltage of power source 380V, 3ph, 17KW, 34A
Frequency 50/60Hz
Power source Raycus / 3000w
